Window Grids

Window Grid Price Calculator

Window grids are classified according to their position on uPVC windows: they can be placed inside the glazing unit (between the panes of glass), on the interior side of the uPVC window, or on the exterior side of the uPVC window. Select the desired window grid type and calculate the price:

Select “Grids inside the glazing”, in order to calculate the price of window grids to be installed between two or three panes of glass.
Select “Grids on the glazing”, in order to calculate the price of window grids to be installed on the interior and exterior surface of uPVC windows.
Indicate the number of vertical and horizontal bars.

Note:
If you are interested in window grids with duplex, please contact our staff and we will give you a quote. In case you have any questions regarding uPVC window grids, please send us an e-mail Inquire about window grids

Window Grid Prices

Window grid prices are determined by the materials used, and by the complexity of design. The price also depends on the place of mounting: window grids placed between panes of glass are cheaper than window grids that are put on the surface of uPVC window glass.

Window Grid Type	Price
Thick inner-pane grid 18 mm or 25 mm	Low price
Thin inner-pane grid 8 mm	Medium price
Grids on the glazing	High price
Grids with duplex	Expensive

Window Grid Benefits

Window grids are also known as window grilles or Georgian bars. These are decorative bars that divide the glass of uPVC window into smaller sections. In the past, it was not possible to produce large panes of glass as we have them today. Therefore, small panes were joined in a variety of designs ...Read more to allow more light into the house. In the modern days, large panes of glass are available, while window grids are seen as a way to adorn one’s house by simulating the “divided light” look of the past. In addition to creating an authentic historical style for your house, window grids add a sense of privacy. What is more, the effect of multi paned uPVC windows is achieved without actually cutting the glass, so no thermal energy is lost, and the price is much lower than that of the true divided light uPVC windows. Window grids are particularly useful for houses in certain historic districts where it is required to maintain the original window grid style. The inner-pane window grid is particularly attractive for being maintenance-free. Due to the wide selection of styles and materials, each house can be given a unique look. Hide

Window Grid Comparison

Window grids come in two types: grids inside the glazing and grids on the surface ...Read more of the glazing.
Grids inside the glazing also called inner pane grids are firmly fixed to uPVC windows between the panes of glass. It is possible to use any available RAL colour. This type of window grids allows cleaning the uPVC windows without any obstructions. Moreover, being inside, they do not gather dust and are maintenance-free. However, if looked up from close distance, this type does not provide the depth effect of real divided light uPVC windows. Inner pane grids for uPVC windows are often made of aluminium.

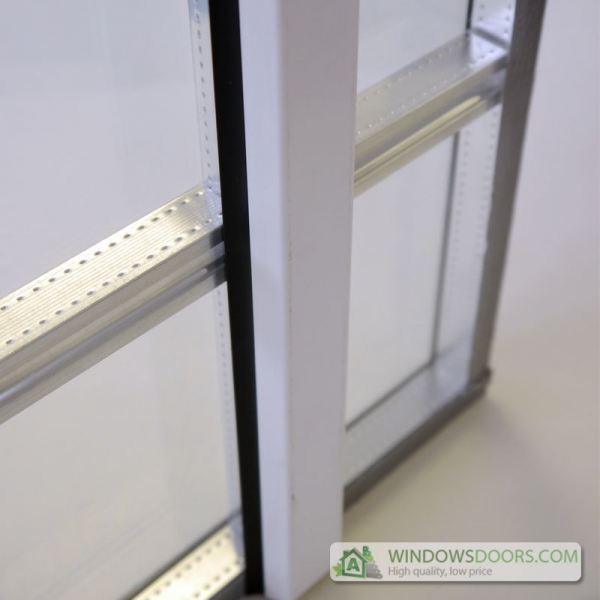

Grids on the glazing can be interior or exterior. Interior grids are placed on the interior side of the uPVC windows, so the divided light effect is mainly visible while inside the house. There is an option to use both an interior grid plus an inner-pane grid to create a more authentic look (known as duplex). Exterior grids are used when the focus is on the exterior of the house. In this case, grids are built on the exterior surface of uPVC windows. If combined with an inner pane grid, a more realistic effect is achieved (known as duplex). Grids made from solid uPVC do not rust and require no painting. Hide

Window Grid Type	Colour	Durability	Price
Thick inner-pane 18 mm / 25 mm	Standard white, brown, all laminated colours or a selection of RAL colours	Very durable	Low price
Thin inner-pane 8 mm	Gold, silver, white or a selection of RAL colours	Very durable	Medium price
Grids on the glazing	All laminate colours	Duplex recommended for colours other than white	High price
Grids with duplex	All laminate colours	Very durable	Expensive

Removable Window Grids

Some window grids for uPVC windows are glued to the glass permanently while others may be easily removed and replaced. In the latter case, there is a “snap-in” mechanism which allows taking the grids out and putting them back in. Only interior and exterior grids for uPVC windows may have this possibility.

Window Grid Patterns

Window grid design possibilities are endless, but there are some already established patterns. They evolved in times when only small panes were manufactured. When choosing a grid pattern for your uPVC windows, it is important to consider the architectural style of your house, as well as the general style of the neighbourhood.

Colonial pattern divides uPVC windows glazing into perfect squares or rectangles. It is important to note that rectangles need to be more tall than wide.
Diamond pattern is characterized by oblique grids that create diamond shapes.

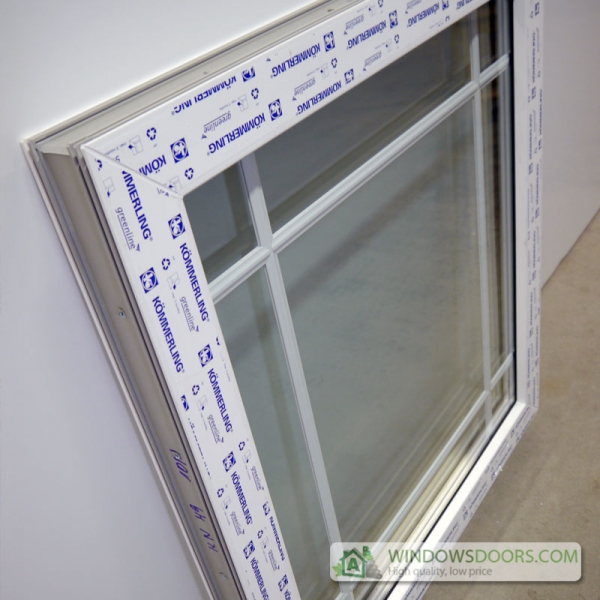

Prairie pattern is usually composed of nine divided lights. There is a small square-shaped light in each corner, while the middle is occupied by a large rectangle-shaped light. This pattern is popular nowadays, because it does not obstruct the view as much as other patterns. A Queen Anne pattern is similar to the Prairie pattern, only that each corner light is divided into four squares instead of one.

Window Grid Specifications

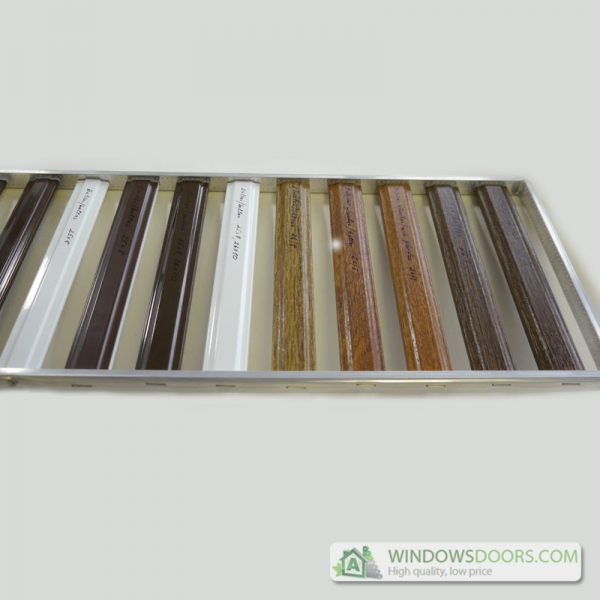

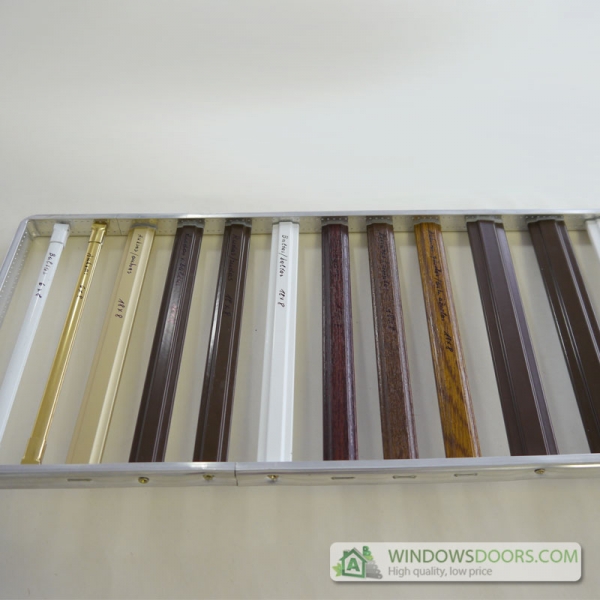

Grids inside the glazing can be selected from several size and colour options:

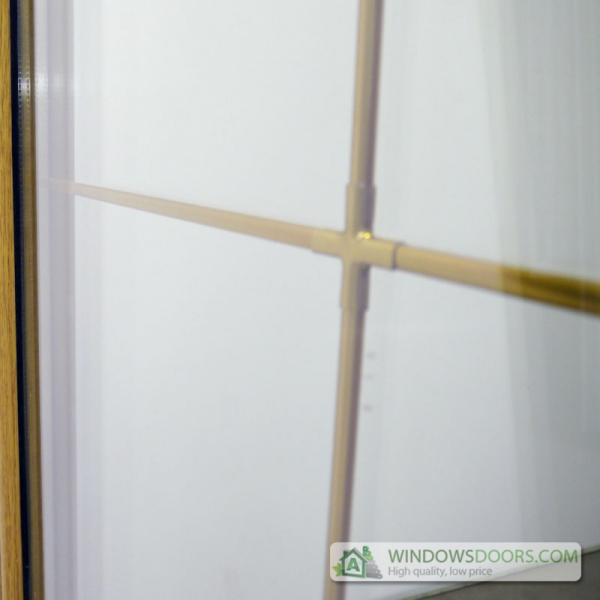

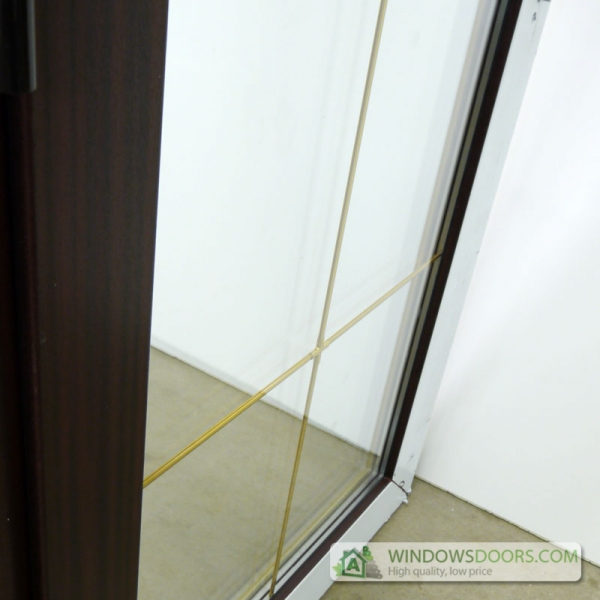

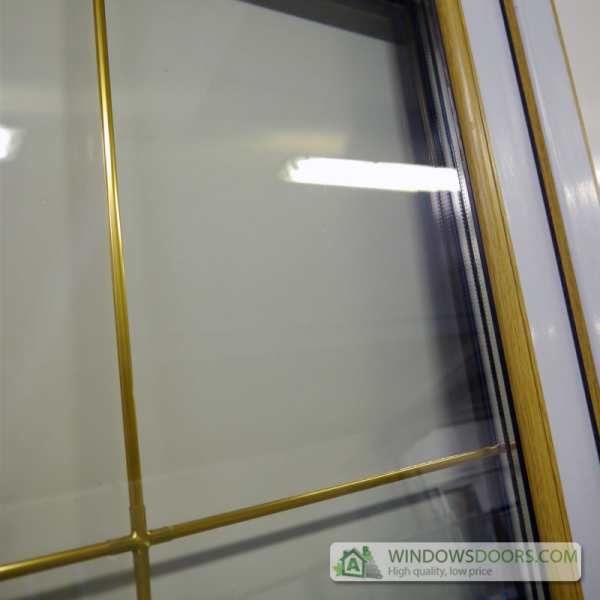

8 mm strips in gold, silver, white or another available RAL colour.

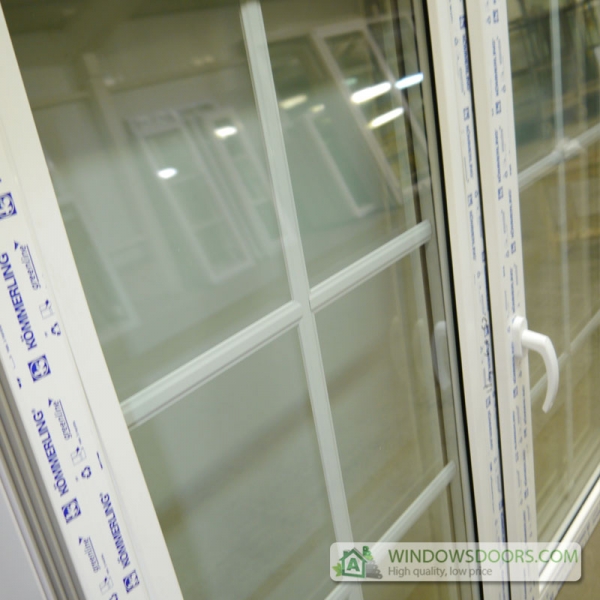

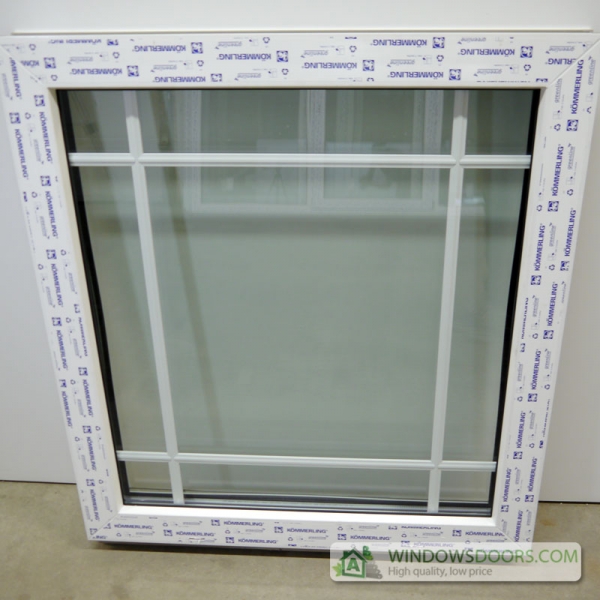

18 mm strips. Standard colours are white and brown, other RAL colours available at an additional cost.
25 mm and 26 mm strips. Standard colours are white and brown, other RAL colours available at an additional cost. Possible to laminate in the colour of uPVC windows.

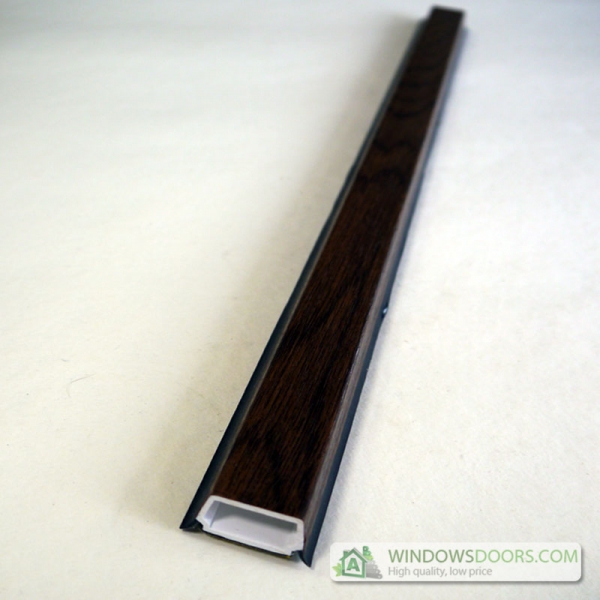

Grids on the glazing are glued to the surface of the glass, and can be either thin 25 mm or thick 45 mm. Colours are selected by the colour of uPVC windows.

Window Grid Guarantee

Window grids have no separate guarantee, but are included in the general guarantee of uPVC windows, which is outlined in the agreement to be signed prior to the manufacturing process. Grids inside the glazing are more durable compared with grinds that are glued on the surface of the glazing. Durability of grids on the glazing can be enhanced by using duplex.
